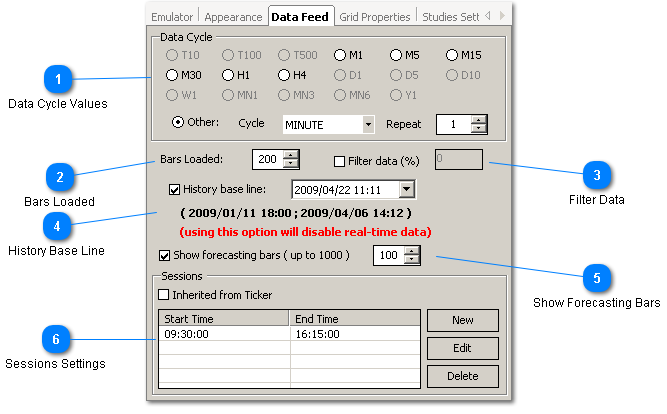

Data Feed tab

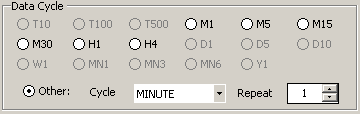

Data Cycle group provides ability to set current chart data cycle. See also Chart Resolution: Data Cycle.



Bars Loaded is a number of historical bars to be displayed on the chart. See also Number of Loaded Bars.





From time to time data feeder can return incorrect data (open, close, high or low value). WinTrend provides possibility to correct such bars using Filter Data option.



See also Using Data Filter Option.





Use History base line option to specify 'time baseline' to load historical data. This gives ability to display 'window' in historical data (for example if the user would like to analyze previous data in order to compare with the current market).



See also Using History Baseline.



Note. Using this option will disable displaying real-time data on the chart (though this will not stop receiving real-time data).



Show forecasting bars option will enable indicators extension into future bars. The main goal of such extension is market forecasting / prediction.



See also Using Future Bars.



Note. Not all indicators has support for future bars handling.

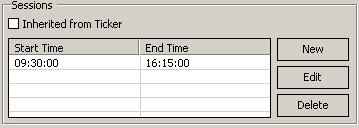

Chart sessions configuration. More about Session Settings: Session Settings, Trading Sessions.
